LuxConnect's Data Center Infrastructure
LuxConnect’s Data Centers are carrier-neutral, multi-tenant and multi-Tier (Uptime Institute certified Tier II and Tier IV). So your racks and servers are in a highly secured, state-of-the-art environment.
Data Center specifications
- LuxConnect's facilities are equipped with 2N redundant cooling. Cooling inside server rooms is installed according to your needs (air or water cooling)
- Fire and very early smoke detection aspiration system (VESDA)
- Neutral gas (nitrogen) fire suppression system
- Water leakage detection
- Customer rooms and cages feature lightning protection, free reused energy, continuous power (no matter what hazard may occur), outstanding ventilation and last but not least low green energy prices
- LuxConnect takes care of maximum energy efficiency. The PUE of LuxConnect's Data Centers ranges from 1.2 to 1.5
- All Tier IV offerings benefit from a 99.995% SLAs
- Server room temperature is managed according to ASHRAE TC9.9 Class A1 recommended, which means temperatures of 18-27° C
- The buildings have independent and redundant connections to the power grid and are equipped with 2 x (N+1) UPS systems
- Diesel generators (gensets) have an autonomy of 48 hours at full IT load with 24/7/365 refuel contracts
- Sourcing of 100% renewable energy
Maintenance of electrical and HVAC equipment is carried out exclusively by trained experts from the DataCenterEnergie S.A. company. DCE is a 50/50 joint venture between LuxEnergie and LuxConnect. LuxEnergie acts as a specialist in energy contracting with recognised expertise in cogeneration.
Our Data Centers

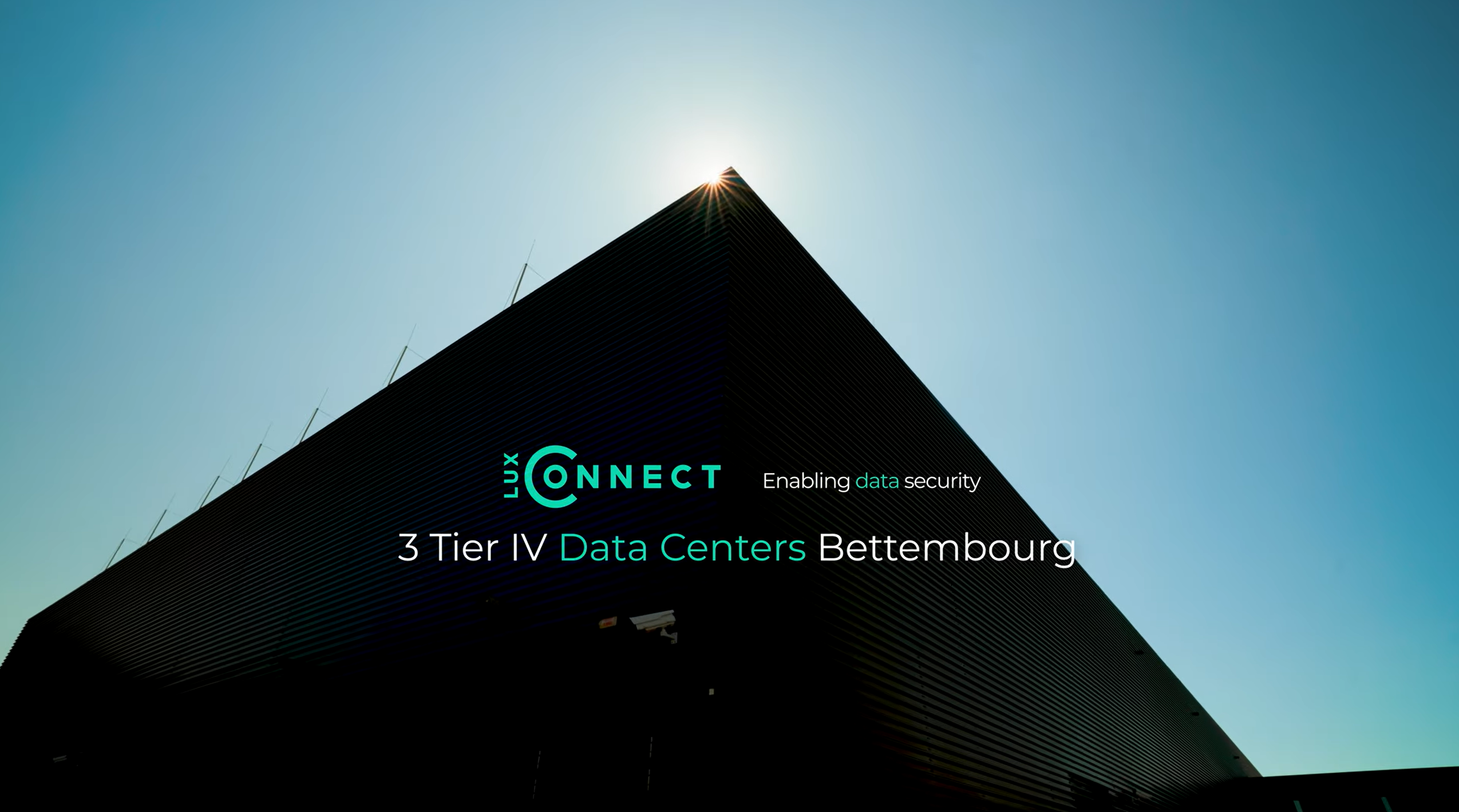

Bettembourg
Bissen
DC 1.1
Street address
L-3290 Bettembourg
Gross size / Net size
10,000 m² / 3,100 m²
Power available
2 x 6.3 MVA
Cooling specifications
Water input 10° C;
output 15° C
DC 1.2
Street address
L-3290 Bettembourg
Gross size / Net size
4,500 m² / 1,300 m²
Power available
2 x 6.3 MVA
Cooling specifications
Water input 10° C;
output 15° C
DC 1.3
Street address
L-3290 Bettembourg
Gross size / Net size
23,500 m² / 5,500 m²
Power available
2 x 10.0 MVA
Cooling specifications
Water input 15° C;
output 21° C

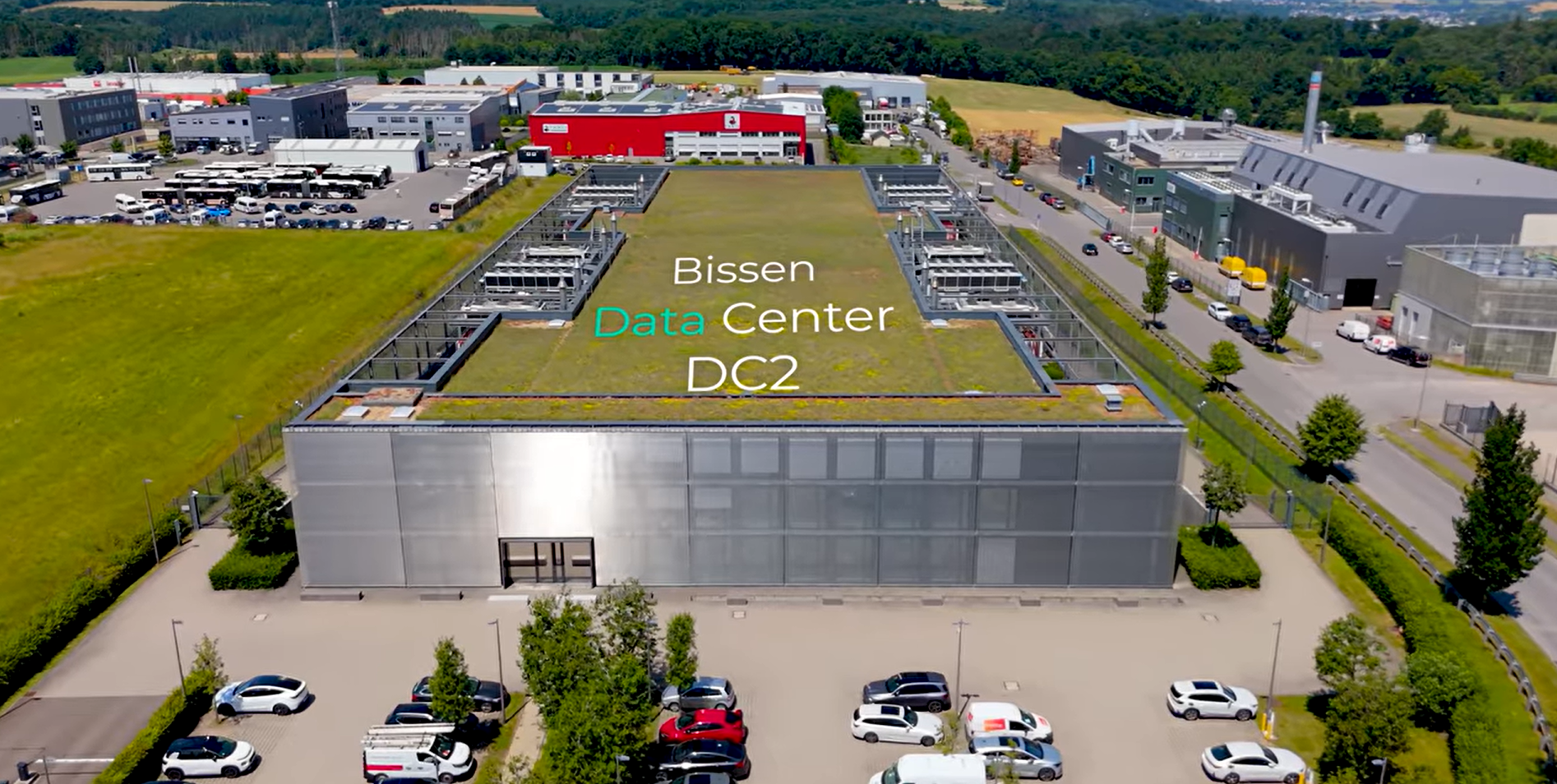

DC 2
Street address
L-7795 Bissen / Roost
Gross size / Net size
21,000 m² / 4,800 m²
Power available
2 x 12.6 MVA
Cooling specifications
Water input 12° C;
output 18° C
State-of-the-art Data Centers
based on green energy
State-of-the-art Data Centers
based on green energy
Regardless of the bricks-and-mortar aspect of LuxConnect’s Data Centers, they constitute above all a secure, eco-friendly service environment where racks and servers feel at home.
Since the launch of the first Data Center in June 2009, LuxConnect has continuously improved the ecological footprint of operations: recycling and cogeneration are the drivers of a green energy policy.
On the “recycling” side, server heat loss heats office buildings, while recycled biomass is used to fuel the cogeneration plant of an energy partner.
Hot steam from that process not only produces electricity but is also the “raw material” helping servers within LuxConnect’s Data Centers to keep a cool brain.
Adding a little exoticism to the energy mix, LuxConnect sources hydroelectricity from Norway. While some may consider this a challenge, committing to a Power Usage Effectiveness (PUE) that ranges from 1.5 to 1.2 is a matter of obvious choice and social responsibility.
